After two decades of operating Extrusion Equipment across three continents, I have watched countless manufacturers struggle with the same fundamental decision: twin-screw or single-screw extrusion technology. The choice is not simply about budget—it is about understanding your material behavior, your product requirements, and your long-term production goals. This guide synthesizes everything I have learned from running both technologies at scale, including the latest industry data and standards for 2026.

Understanding the Fundamental Differences

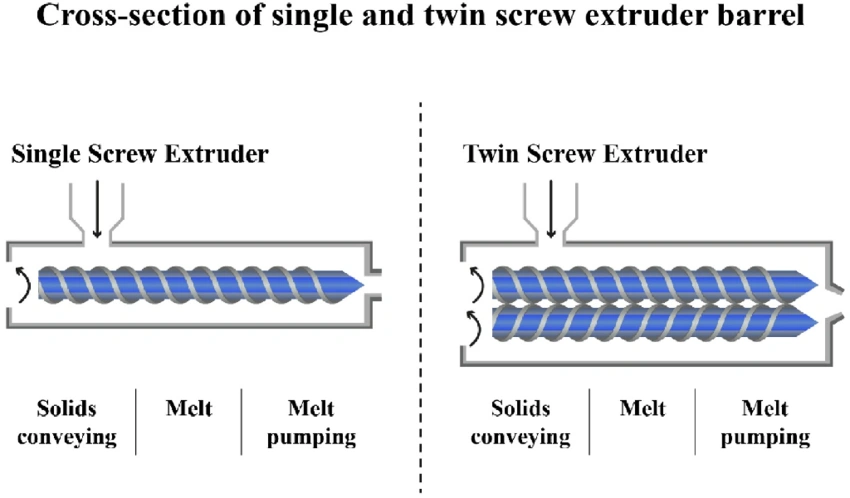

The distinction between twin-screw and single-screw extruders runs deeper than the obvious presence of one versus two screws. At its core, the difference lies in how each system handles material conveying, melting, mixing, and pressure generation. These mechanical differences cascade into dramatically different performance characteristics that directly impact your production efficiency, product quality, and ultimately your bottom line.

In a single-screw extruder, the material moves through the barrel through the friction between the polymer and the screw surface, and between the polymer and the barrel wall. The screw's helical flight creates a drag flow that pushes material forward, but this mechanism has inherent limitations when dealing with difficult-to-feed materials or when intensive mixing is required. I have seen production lines shut down for hours because a single-screw feeder could not handle a hygroscopic compound properly.

Twin-screw extrusion fundamentally changes this dynamics. With two intermeshing screws, material is positively displaced rather than simply dragged forward. This positive displacement eliminates the feeding inconsistencies that plague single-screw operations, particularly with powders, flakes, or compounds with irregular particle size distributions. The screws essentially push the material rather than pull it, creating a more predictable and controllable processing environment.

How Screw Geometry Influences Performance

The physical configuration of screws in each system deserves careful attention, as geometry directly determines what your equipment can and cannot do effectively.

Single-Screw Geometry

Single-screw extruders typically feature a screw with a constant depth channel or a gradually decreasing channel depth from feed to discharge. The compression ratio—the ratio of feed section channel depth to metering section channel depth—determines how effectively the material is compacted and fused. Most commodity extrusion applications use compression ratios between 2:1 and 4:1, depending on the material and product requirements.

The screw's L/D ratio (length-to-diameter ratio) significantly impacts performance. Standard extruders with L/D ratios of 24:1 to 30:1 work well for simple extrusion tasks. Higher L/D ratios up to 48:1 provide extended melt homogenization but increase energy consumption and heat generation. For specialized applications requiring specific residence times, custom L/D configurations can be engineered.

Twin-Screw Geometry

Twin-screw extruders offer vastly greater geometric flexibility because the screw elements are modular. Each element serves a specific function: feeding, conveying, compressing, mixing, or devolatilization. This modularity allows processors to optimize the screw configuration for each unique formulation and product. I regularly reconfigure our twin-screw lines when switching between different compound formulations—it takes hours rather than the days required to modify a single-screw setup.

The intermeshing zone where the two screws meet creates a characteristic figure-eight cross-section that dramatically affects processing. This geometry provides self-wiping action that prevents material stagnation and ensures consistent residence time distribution. For applications requiring precise control over reaction times or color development, this predictability is invaluable.

Detailed Technical Comparison

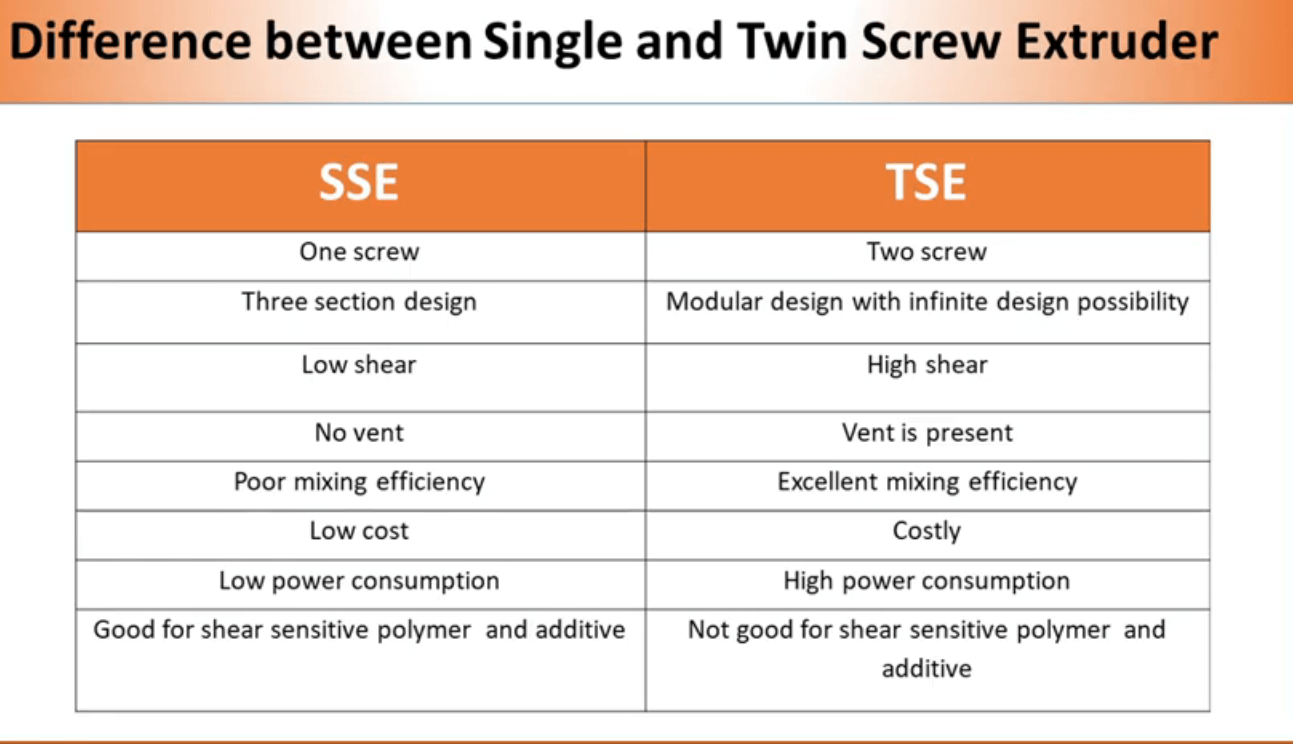

The following tables summarize the key performance differentiators between twin-screw and single-screw extrusion technologies based on industry data and operational experience.

Material Processing Capabilities

Applications and Use Cases

Understanding where each technology excels helps frame the decision context. The applications are not mutually exclusive—many operations benefit from both technologies in different production stages.

Where Single-Screw Extruders Excel

After years of optimizing single-screw operations, I have identified clear winning applications for this technology. Pipe extrusion represents perhaps the most successful single-screw application. The continuous, homogeneous nature of pipe production—where the same material runs at constant conditions for extended periods—suits single-screw capabilities perfectly. Modern PVC pipe lines achieve production speeds that would have seemed impossible twenty years ago, and single-screw technology is central to this performance.

Profile extrusion for window frames, door sections, and architectural moldings similarly favors single-screw technology. These applications typically use consistent formulations with predictable melt behavior. The multi-head capabilities of modern profile lines—running different die configurations simultaneously—work economically because each line can dedicate its own simple extruder to a specific profile geometry.

Sheet and film extrusion also benefit from single-screw optimization. The production of thermoplastic sheets for packaging, construction, and industrial applications typically involves straightforward materials where the extruder's mixing capability is not a limiting factor. When we install profile extrusion lines for customers producing architectural profiles, the single-screw configuration typically provides the best cost-to-performance ratio for their specific requirements.

Wire and cable insulation represents another traditional stronghold for single-screw extrusion. The continuous nature of wire coating, combined with established material systems (primarily PVC and polyethylene compounds), makes single-screw technology the economical choice. Cross-head extrusion dies for wire coating require consistent melt pressure—something single-screw extruders deliver reliably once properly configured.

Where Twin-Screw Extruders Excel

The compounding world is unequivocally twin-screw territory. Creating homogeneous blends from multiple raw materials—polymers, additives, fillers, colorants—requires the intensive mixing that twin-screw technology provides. When we process additives that must be uniformly distributed at parts-per-million concentrations, twin-screw extrusion is not just advantageous; it is essential. The dispersive mixing from kneading blocks breaks down agglomerates effectively, while the distributive mixing from screw channels ensures uniform concentration throughout the melt.

Reactive extrusion processes absolutely require twin-screw technology. Chemical reactions that occur during extrusion—grafting, polymerization, crosslinking—need precise control over residence time and temperature. A reaction that requires exactly 90 seconds at 220°C will fail in a single-screw extruder simply because the residence time distribution is too broad. Different material parcels experience different thermal histories, leading to inconsistent product quality.

Masterbatch production demonstrates twin-screw advantages clearly. Concentrating pigments or additives into a carrier resin at 40-60% loading requires both dispersive and distributive mixing capabilities that single-screw technology cannot reliably provide. Our customers producing color masterbatches and additive concentrates consistently choose twin-screw equipment because the quality consistency directly impacts their customers' end-product appearance and performance.

The medical extrusion market increasingly favors twin-screw technology for compound development, even when the final product extrusion uses single-screw equipment. Medical-grade materials often require specific property combinations achievable only through compound development. The purity, consistency, and traceability requirements of medical device materials align perfectly with twin-screw compounding capabilities.

Material Considerations and Processing Challenges

Material behavior in extrusion is far more complex than most textbooks suggest. Real-world processing involves moisture sensitivity, thermal stability windows, rheological behavior, and particle morphology effects that can make or break production runs.

Moisture and Pre-Drying Requirements

Moisture in polymer compounds causes more production problems than any other single factor. Hydrolysis during extrusion creates molecular weight degradation, resulting in reduced mechanical properties and surface defects. Both extruder types require properly dried materials, but twin-screw systems handle moisture issues more gracefully due to shorter, more controlled residence times.

In single-screw extrusion, material sits in the hopper and feed throat for extended periods before entering the barrel. If material absorbs moisture during this pre-feed delay, degradation begins before the polymer even enters the processing zone. Twin-screw systems minimize this pre-feed exposure through their positive displacement feeding, which moves material through quickly without the dead zones common in single-screw feed sections.

For hygroscopic materials like PET, PA, and certain engineering polymers, proper drying is non-negotiable. The industry standard is 4-6 hours at specific temperatures depending on the polymer—PET typically requires 4-6 hours at 160-180°C. Regardless of extruder type, failure to achieve and maintain proper dryness will compromise product quality.

Thermal Sensitivity and Degradation

Every polymer has a thermal stability window beyond which degradation accelerates. For single-screw extrusion of thermally sensitive materials, the broad residence time distribution means some material parcels exceed safe temperature exposure limits while others remain under-processed. This variability compounds across production runs, creating quality drift that operators often attribute to other factors.

Twin-screw extrusion provides narrower residence time distribution, ensuring more uniform thermal exposure. For automotive applications where automotive pipe extrusion lines must meet stringent material specifications, this consistency translates directly to mechanical property reproducibility.

Feed Material Form Considerations

The physical form of feed material significantly impacts processing behavior. Pellets flow reliably in both extruder types, but powders, flakes, and recycled material present challenges that favor twin-screw technology.

Powder compounds—a common form for PVC dry blends and some filled systems—create feeding difficulties in single-screw extruders. The irregular packing density of powders leads to inconsistent feeding that manifests as pressure fluctuations and output variations. Twin-screw feeders handle powders through the positive displacement principle, delivering consistent feeding regardless of powder flow characteristics.

Recycled materials present particular challenges due to their heterogeneous nature. Recycle pelletizing extruders using twin-screw technology can handle mixed waste streams and convert them into consistent, usable pellets. The ability to incorporate compatibilizers and impact modifiers during recycling enables value recovery from materials that would otherwise go to landfill.

Energy Consumption and Operational Efficiency

Energy costs represent a significant portion of extrusion operating expenses. Understanding how each technology consumes energy helps frame total cost of ownership properly.

Single-screw extruders typically show lower specific energy consumption (kWh/kg) for simple extrusion tasks because they have fewer mechanical components and simpler transmission systems. A well-configured single-screw line might consume 0.25-0.35 kWh per kilogram of output for commodity pipe extrusion. This efficiency advantage disappears, however, when processing becomes more complex.

Twin-screw extruders consume more energy per unit output due to the additional mechanical losses from two screw bearings, gear mesh, and the power required to drive intermeshing screws. Specific energy consumption typically runs 0.35-0.50 kWh/kg for compounding applications. However, this higher energy consumption comes with corresponding quality and productivity benefits that often offset the energy difference through reduced scrap rates and faster product changeovers.

The 2025 Grand View Research report on global extrusion equipment market trends indicates that energy efficiency improvements represent a major R&D focus for both technologies. Recent developments in motor efficiency, barrel insulation, and process control algorithms have narrowed the energy gap between technologies. For 2026, I expect continued innovation in this area, particularly for twin-screw drives where permanent magnet synchronous motors are replacing traditional induction motors.

Capital Investment and Total Cost of Ownership

Initial capital cost often dominates the equipment selection discussion, but it represents only part of the total cost picture. I encourage my clients to consider total cost of ownership (TCO) over the equipment's productive life, typically 10-15 years for well-maintained extrusion equipment.

A single-screw extruder with comparable barrel size typically costs 40-60% less than a twin-screw extruder from the same manufacturer. This differential reflects the simpler mechanical design, single transmission system, and standardized components of single-screw equipment. For manufacturers with straightforward extrusion needs and limited technical resources, this lower entry barrier can be decisive.

However, TCO analysis frequently favors twin-screw technology for compound-intensive operations. The ability to produce compounds in-house eliminates purchased compound premiums, which often exceed the equipment cost differential over a few years of production. Additionally, the versatility of twin-screw equipment—running different formulations on the same machine with reconfigured screws—reduces the number of machines required for diverse product portfolios.

Maintenance Requirements and Operational Considerations

Maintenance requirements differ significantly between the two technologies, impacting both planned downtime and unexpected failures. Understanding these differences helps with staffing decisions and maintenance scheduling.

Single-screw extruders benefit from mechanical simplicity. With only one screw to monitor and maintain, wear tracking is straightforward. The barrel and screw wear patterns are well-understood, and inspection intervals can be established based on operating hours and material abrasiveness. For production of commodity materials with non-filled compounds, annual inspections typically suffice. The screw and barrel can often be rebuilt or replaced at reasonable cost, extending equipment life significantly.

Twin-screw maintenance is more involved but also more manageable on an element-by-element basis. Since the screws consist of modular elements mounted on shafts, wear assessment can target specific functional zones rather than requiring complete disassembly. Feed section elements wear differently than mixing elements, and replacement can be limited to the affected zones. This selective replacement approach reduces maintenance costs while addressing actual wear conditions.

The transmission and bearing systems present the most significant maintenance difference. Single-screw extruders have one main thrust bearing and one drive train. Twin-screw extruders have two complete bearing assemblies plus the gear box that synchronizes the two screws. Regular oil analysis and bearing condition monitoring are essential for twin-screw reliability. I have seen premature failures in both systems, but the twin-screw failures tend to be more dramatic due to the interconnected nature of the two drive systems.

Making the Right Selection for Your Operations

After guiding dozens of equipment selection decisions, I have developed a framework that helps manufacturers focus on the factors that actually matter for their specific situation. The technology choice should flow from your product requirements, not from equipment preferences or manufacturer relationships.

Start by honestly assessing your formulations. If your products require compounds with multiple ingredients, high filler loadings, or reactive processing, twin-screw technology is almost certainly the right choice. The compounding capability premium is worth paying when the alternative is purchasing pre-compounded materials at higher cost or accepting quality limitations. Parallel twin-screw extruders provide the flexibility needed for these demanding applications.

If your products use commodity materials in straightforward configurations—standard pipes, simple profiles, basic sheet—single-screw technology likely provides the best economic outcome. The simpler operation, lower maintenance burden, and reduced energy consumption for simple materials add up to competitive production costs. PVC O-pipe extrusion lines exemplify applications where single-screw technology excels.

Consider your production volume and changeover frequency. High-volume production of unchanging products favors single-screw optimization. The setup time investment pays off when running the same product for weeks or months. Frequent product changes, multiple formulations, and customization requirements favor twin-screw flexibility. The ability to reconfigure screw elements for different products in hours rather than days provides significant operational advantage for diverse product portfolios.

Evaluate your technical capabilities honestly. Twin-screw extrusion requires more sophisticated process knowledge. Understanding how screw configuration affects mixing, how element sequence impacts residence time, and how to optimize for specific formulation requirements demands technical expertise. If your team lacks extrusion expertise or operates in an environment where process knowledge is difficult to retain, single-screw technology's simpler operation may be more appropriate.

Emerging Trends and 2026 Outlook

The extrusion equipment landscape continues to evolve, with several trends shaping both technologies for 2026 and beyond.

Digitalization and Industry 4.0 integration are transforming extrusion operations. Advanced process monitoring systems now provide real-time visibility into hundreds of parameters, enabling predictive maintenance and automated quality assurance. Both twin-screw and single-screw extruders benefit from these developments, but twin-screw systems with their more complex parameter interactions may see greater quality improvements from sophisticated control algorithms.

Sustainability requirements are driving material innovation that favors twin-screw capabilities. Bio-based polymers, recycled content mandates, and circular economy requirements create processing challenges that twin-screw technology handles better. The ability to incorporate recycled materials, add compatibilizers, and compensate for property variations through formulation adjustments positions twin-screw equipment as central to sustainable manufacturing strategies.

Mini-extruders for laboratory and pilot-scale development are increasingly twin-screw based, reflecting the compounding focus of modern polymer development. Companies developing new formulations need equipment that can scale predictably from laboratory to production, and twin-screw technology provides that correlation more reliably than single-screw alternatives.

For more information on specific equipment configurations for your applications, explore JURRY's comprehensive pelletizing extrusion lines and die head solutions designed for both production technologies.

Frequently Asked Questions

Conclusion

Both twin-screw and single-screw extrusion technologies have legitimate roles in modern manufacturing. The key to making the right choice lies in matching the technology to your actual requirements rather than defaulting to habit, budget constraints, or manufacturer preferences. I have seen operations succeed with both technologies and I have seen both technologies fail when misapplied.

The trend toward more sophisticated material formulations, recycled content incorporation, and compound-based processing suggests that twin-screw technology will continue gaining market share. However, single-screw extrusion remains the optimal choice for straightforward, high-volume production of commodity products where material simplicity is an advantage rather than a limitation.

My recommendation is always the same: start with your product requirements and work backward to technology selection. What must the equipment do? What materials will you process? What are your quality requirements? How frequently do you change products? The answers to these questions will point you toward the right technology more reliably than any generic comparison can.

If you are evaluating extrusion equipment for your operations, I encourage you to discuss your specific requirements with our technical team. JURRY manufactures both twin-screw extruders and single-screw extruders, so our recommendations are based on application fit rather than a predetermined technology preference.
